[ Jenkins ] 구성

개요
Jenkins은 CI 역할을 합니다.
- Docker Image Build
- Chart Build & ChartMuseum upload



Jenkins Install

• Jenkins 설치

sudo yum update -y

sudo wget -O /etc/yum.repos.d/jenkins.repo https://pkg.jenkins.io/redhat-stable/jenkins.repo

sudo rpm --import https://pkg.jenkins.io/redhat-stable/jenkins.io.key

yum install -y jenkins

yum install -y git

yum install -y java-11-amazon-corretto

• Jenkins 실행

systemctl restart jenkins.service

systemctl status jenkins.service



GitHub Repository Sync 설정

• ssh-keygen 생성
  • Jenkins가 GitHub Repository 연결할 때 사용할 SSH Key 생성

sudo su -s /bin/bash jenkins
whoami; id

mkdir /var/lib/jenkins/.ssh
ssh-keygen -t rsa -b 4096 -C "side-project" -f /var/lib/jenkins/.ssh/github

chmod 755 /var/lib/jenkins/.ssh
chmod 600 /var/lib/jenkins/.ssh/github
chmod 600 /var/lib/jenkins/.ssh/github.pub

• GitHub에서 SSH public key 등록
  • GitHub Repository → Settings → Deploy Keys → “public key 입력(github.pub)“

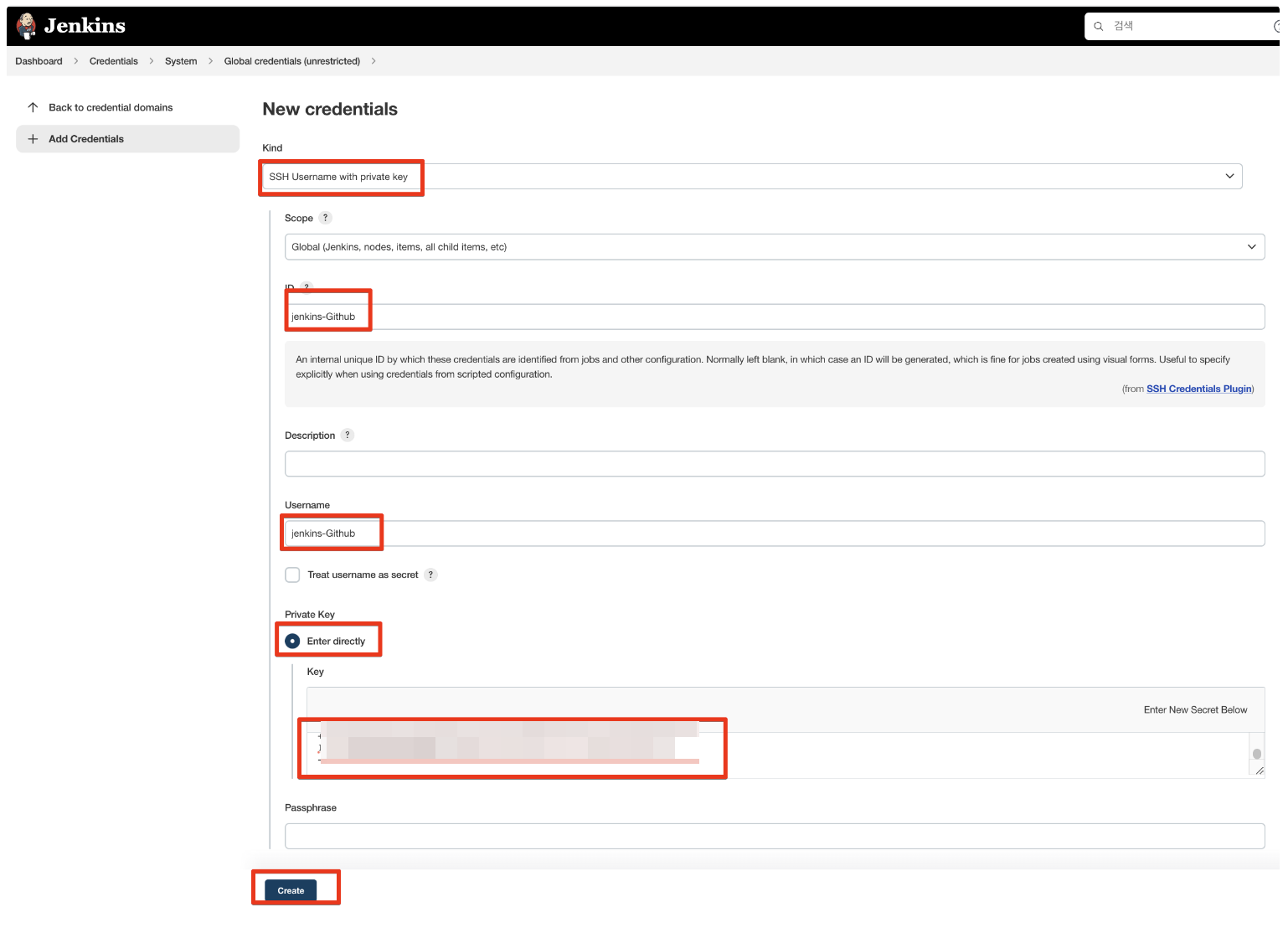

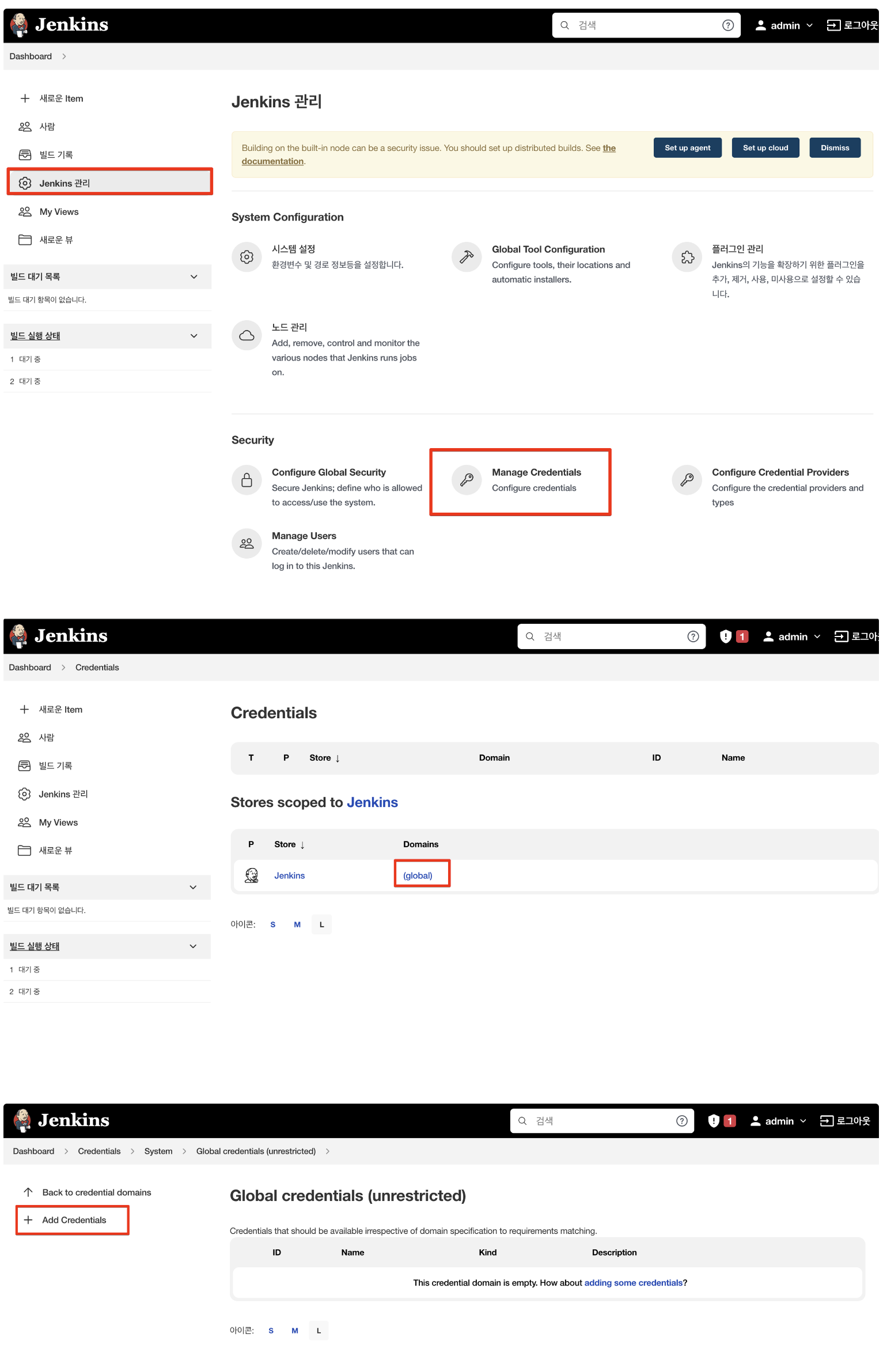

• Jenkins GitHub private key 등록





• Credentials Key 등록 완료

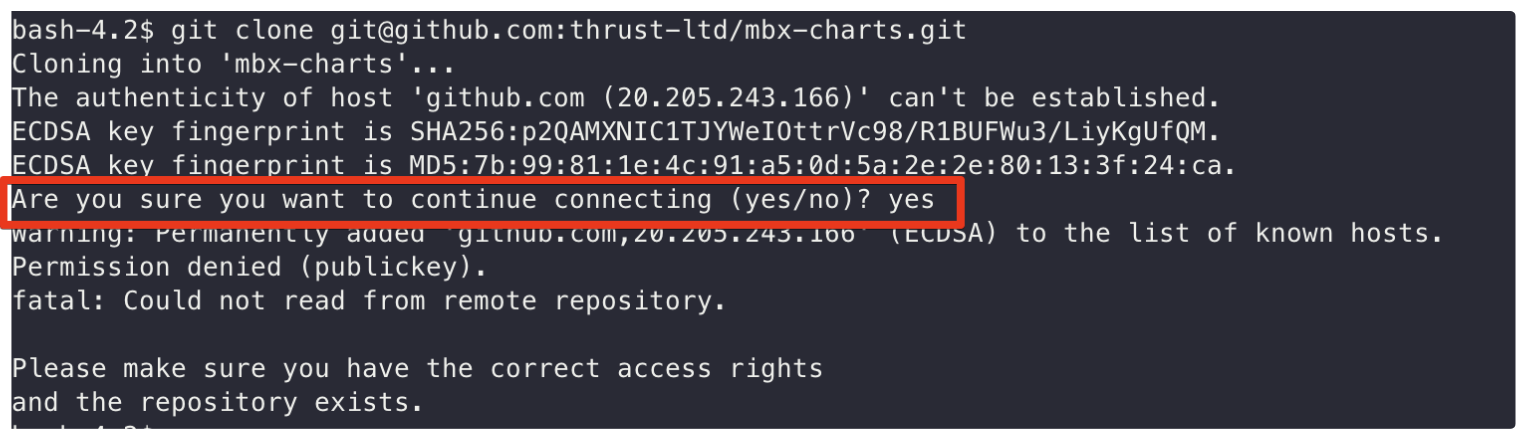

• 최초 한번 ssh 로그인

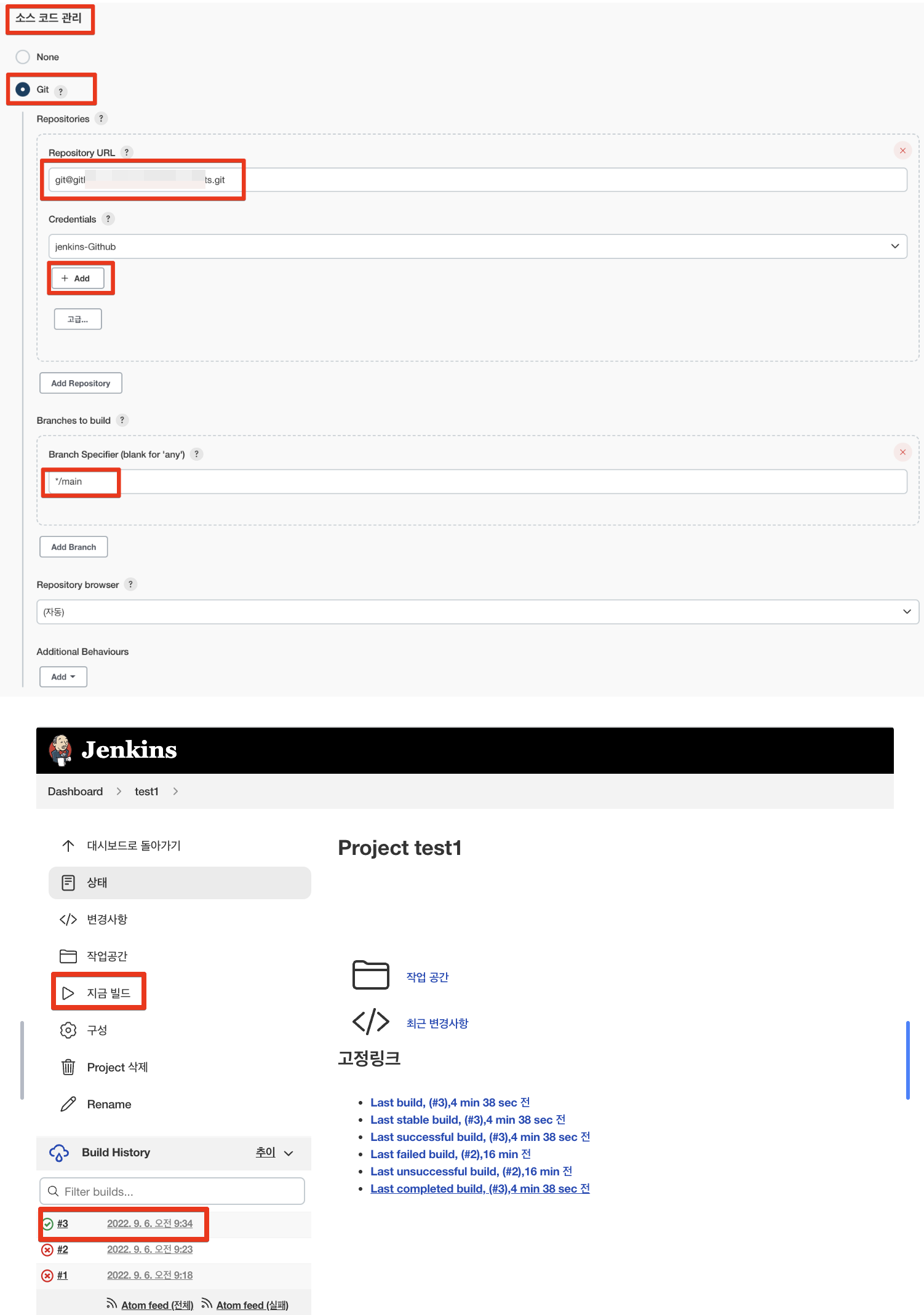

• GitHub Repository Clone 테스트
  • Dashboard > 새로운 Item > Freestyle project > GitHub Repository 등록







• git clone되었는지 확인

ls /var/lib/jenkins/workspace/test1
ls /var/lib/jenkins/workspace/"Job 이름"



---

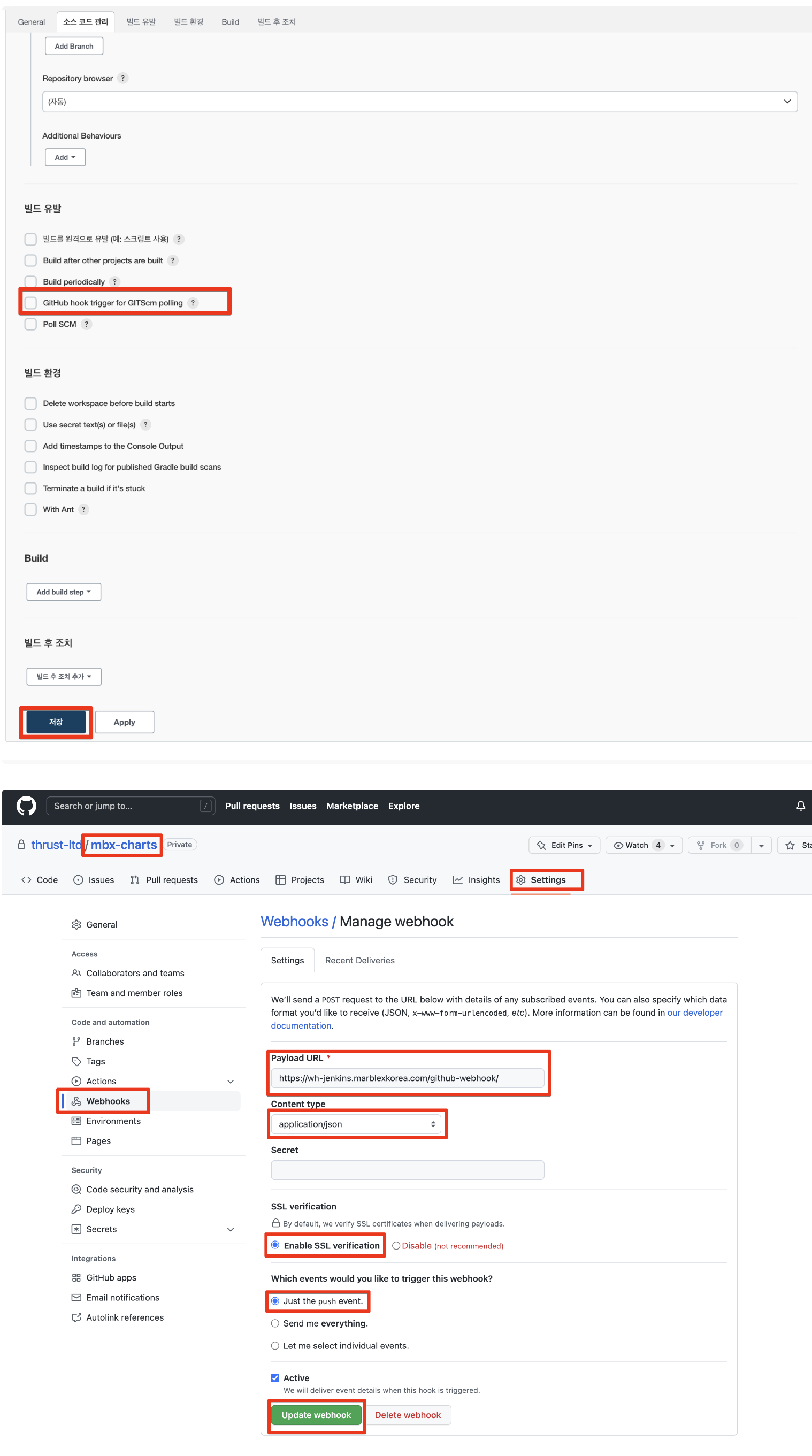

GitHub Webhook 설정

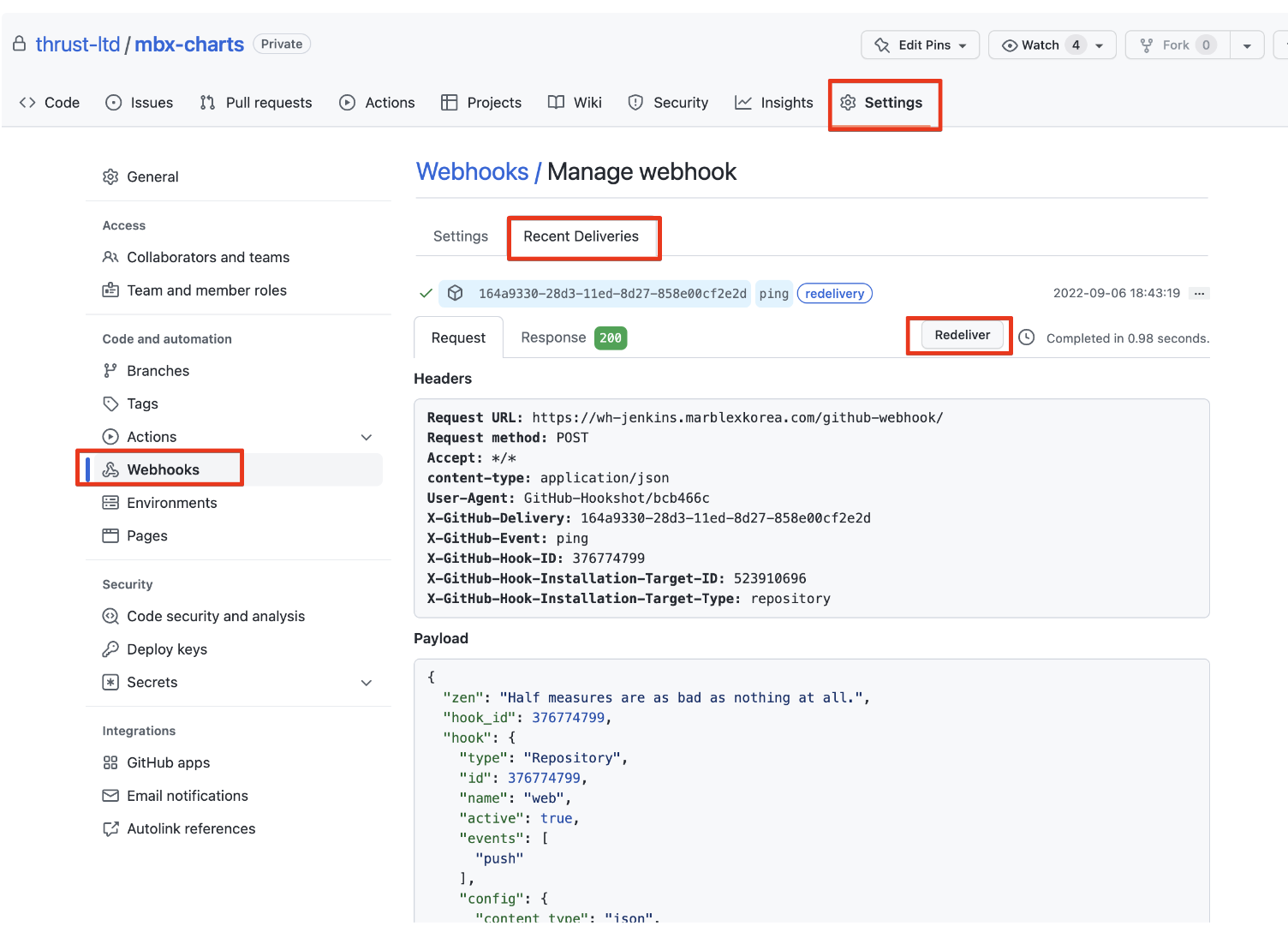

• GitHub Webhook 테스트 1
  • GitHub webhook → Jenkins

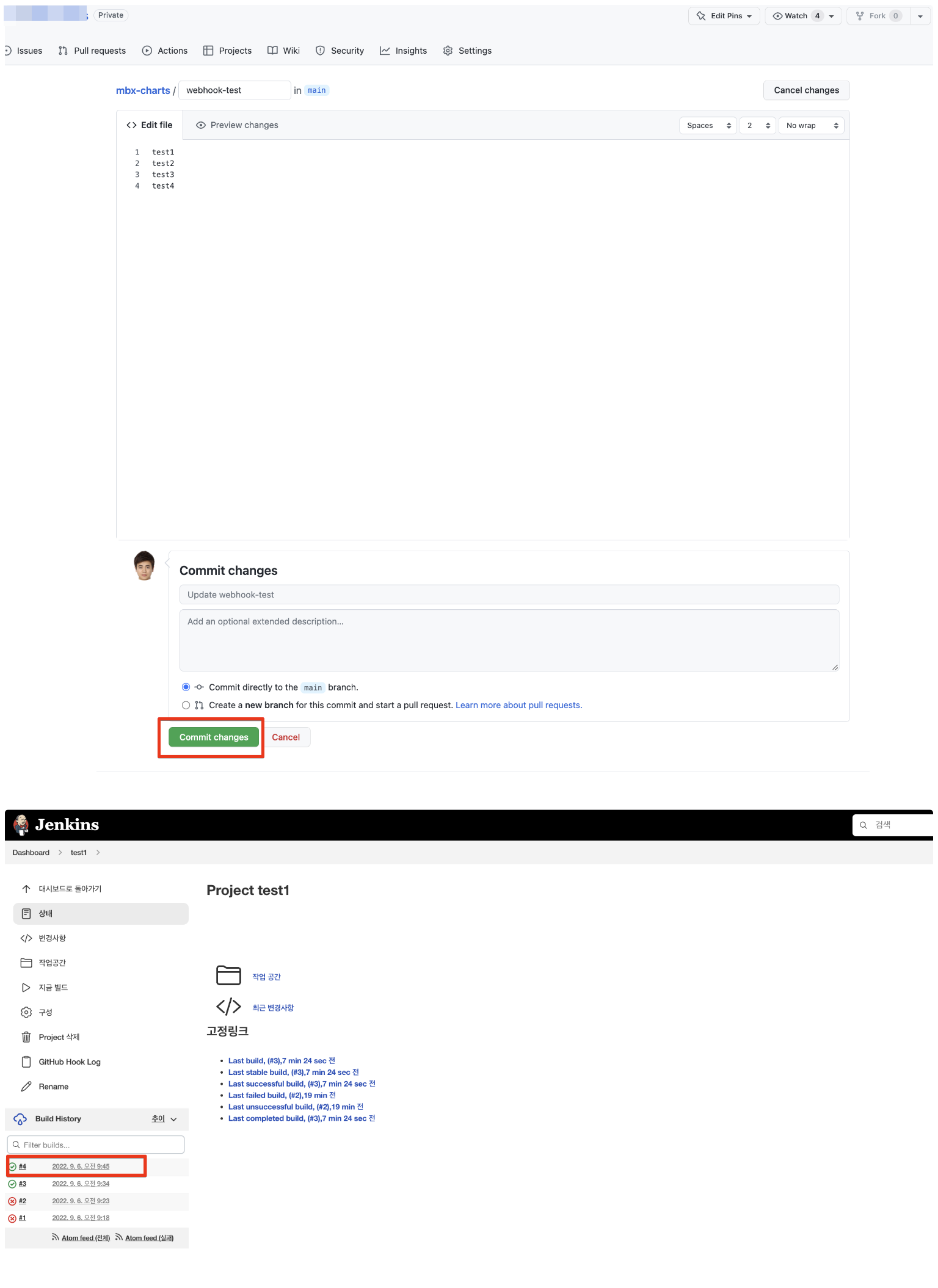

• GitHub webhook 테스트 2
  • GitHub Repository 파일 수정 → Jenkins
  • 파일 수정하면 Jenkins Job 자동 실행 확인











---

ALB Jenkins Target Group에서 unhealthy 상태가 되는 경우, (health check path “/” )

alb.ingress.kubernetes.io/healthcheck-path: "/login?from=%2F" 옵션을 추가해준다.

annotations:
  alb.ingress.kubernetes.io/group.name: jenkins-alb-internal
  alb.ingress.kubernetes.io/load-balancer-name: jenkins-alb-internal
  alb.ingress.kubernetes.io/target-type: ip
  alb.ingress.kubernetes.io/scheme: internal
  alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:ap-southeast-1:xxx:certificate/9xxx
  alb.ingress.kubernetes.io/healthcheck-path: "/login?from=%2F"
  alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS": 443}]'
    #alb.ingress.kubernetes.io/force-ssl-redirect: "false"
  alb.ingress.kubernetes.io/actions.ssl-redirect: "443"
